Gas Engine TCG 2020

1,000 - 2,000 kWel

Best electrical and thermal efficiency in its class. All gas types: natural gas, biogas, mine gas, landfill gas, sewage gas.

  • Output range from 1,000 to 2,000 kWel
  • Best electrical and thermal efficiency in its output class
  • Runs on all gas types

MWM Gas Engine TCG 2020 V12, V16, V20 /
TCG 2020 K

For the Highest Ratings in Ecology and Economy!

  • Output range from 1,000 to 2,000 kWel
  • Best electrical and thermal efficiency in its output class
  • Runs on all gas types: natural gas, biogas, landfill gas, sewage gas, mine gas, etc.
  • Low operating costs
  • TCG 2020 is mainly used for CHP plants in Europe and for biogas worldwide
  • The TCG 2020 V12 in the configuration RW (natural gas) and XW (biogas) is specifically optimized for the 1 MWel capacity range, with even lower operating and maintenance costs
  • TCG 2020 K was especially adapted to non-ISO conditions such as high altitudes or high intake air temperatures in the field of natural gas
  • More than 2000 power generators with approximately 2,800,000 kWel already installed around the globe

The MWM gas engines of the TCG 2020 series are perfectly geared to the challenges of a dynamic market environment. Our models in the output range of 1,000 – 2,000 kWel meet the high requirements of a broad range of applications and guarantee efficiency, reliability, flexibility and environmental sustainability, together with low lifecycle costs and high profitability.

Description – MWM Gas Engine TCG 2020 /
TCG 2020 K

TCG 2020 – High Profitability Thanks to High Efficiency

  • Improvements of the intake duct and spark plug provide higher efficiency compared to predecessor model
  • Miller valve control times increase genset efficiency

TCG 2020 V12 in the Configuration RW (Natural Gas) and XW (Biogas) – Increased Efficiency and Extended Useful Life in the 1 MWel Capacity Range

  • For all natural gas and biogas applications in countries with 50 Hz networks
  • Longer maintenance intervals for all natural gas applications extend useful life by two years
  • Optimized electrical efficiency of 43 percent (under ISO conditions) for natural gas applications
  • Optimized lubricant management
  • Lower internal consumption through higher mixture cooler temperatures for natural gas applications

TCG 2020 K – Optimized for Isolated Operation and Non-ISO Conditions

  • Load response in only seven steps
  • Fast and reliable supply in the event of grid failures or in isolated operation
  • Special 1,000 kWel variant available for high altitude setup and different intake air temperatures

Higher Efficiency and Lower Pollutant Emissions

  • Smaller dead spaces in combustion chamber ensure more complete combustion
  • Reduced fuel consumption and CO and HC emissions
  • This enables gas savings of up to 15 percent a year and increases the profitability of the plant

Higher Efficiency and Long Maintenance Intervals

  • Effective crankcase ventilation increases efficiency by utilizing the returned combustible blow-by gas
  • Optimized blow-by return and improved separation of the gas phase and liquid phase enable longer maintenance intervals for the turbocharger thanks to the clean intake air

K Editions: Maximum Output at Low Costs

  • Improved output capacity of TCG 2020 K under non-ISO conditions and excellent load response through optimum turbocharger design with broad performance map
  • New turbocharger TCR 16 for TCG 2020 with water-cooled bearing housing eliminates need for separate maintenance stages for the turbocharger

High Reliability – MWM Gas Engine TCG 2020 /
TCG 2020 K

Few Interruptions Due to Long Maintenance Intervals

  • No more than two interruptions a year due to scheduled maintenance
  • Longest interval until major overhaul compared to competitors
  • Use of Xchange components enables time savings of up to 75 percent during the major overhaul, resulting in reduced costs

High Reliability through Mature Drive Technology in 60 Hz Range

  • Engine can be operated with an optimum speed of 1500 RPM.
  • Lower speed ensures stable and complete combustion, resulting in lower CO emissions and less component wear and tear

Performance Data – MWM Gas Engine TCG 2020 /
TCG 2020 K

Natural gas applications, NOx ≤ 500 mg/Nm3 *

TCG 2020 V12
RW = Optimized for high total efficiency at requested power
Engine type50 Hz
Electrical outputkW1000
Thermal output ± 8%kW1056
Electrical efficiency%43.0
Thermal efficiency%45.4
Total efficiency%88.4
Power to heat ratio **0.95

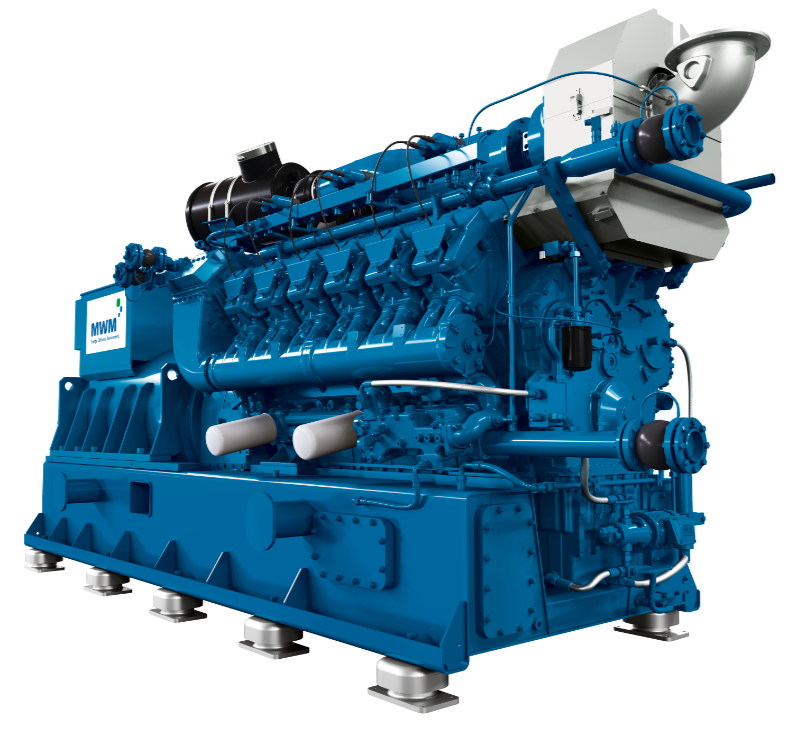

TCG 2020 V12 K
K = Optimized for robustness and low CAPEX
TCG 2020 V12
R = Optimized for high total efficiency
Engine type50 Hz60 Hz50 Hz60 Hz
Electrical outputkW1125112512001200
Thermal output ± 8%kW1251126211891196
Electrical efficiency%41.040.743.743.4
Thermal efficiency%45.645.643.343.2
Total efficiency%86.686.387.086.6
Power to heat ratio **0.900.891.001.00

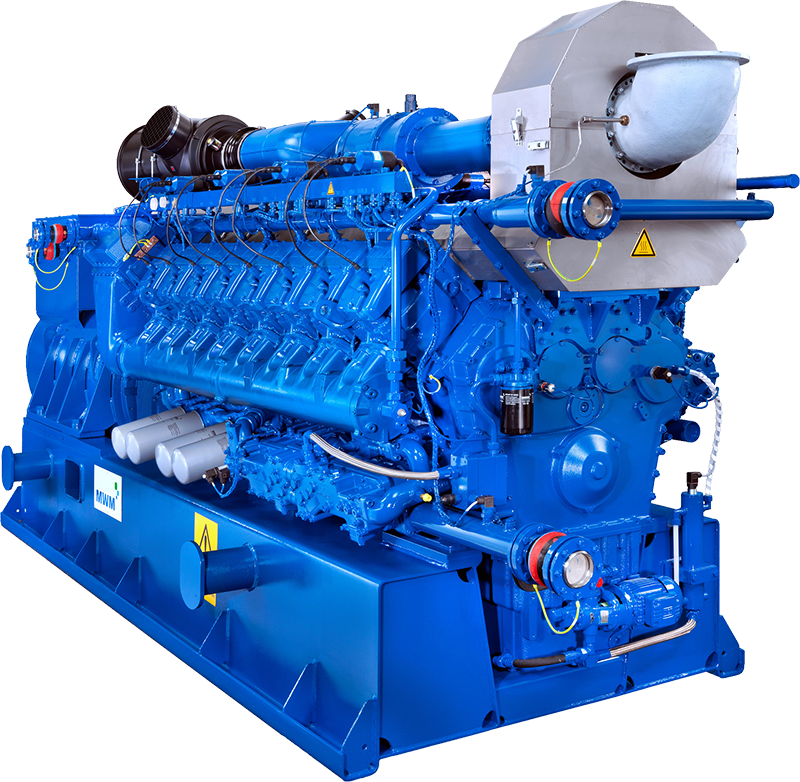

TCG 2020 V16 K
K = Optimized for robustness and low CAPEX
TCG 2020 V16
R = Optimized for high total efficiency
Engine type50 Hz60 Hz50 Hz60 Hz
Electrical outputkW1500150015601560
Thermal output ± 8%kW1675168615761589
Electrical efficiency%40.940.643.343.0
Thermal efficiency%45.745.743.843.8
Total efficiency%86.686.387.186.8
Power to heat ratio **0.890.890.990.98
TCG 2020 V20
R = Optimized for high total efficiency
TCG 2020 V20
P = Optimized for high electrical efficiency
Engine type50 Hz60 Hz50 Hz
Electrical outputkW200020002000
Thermal output ± 8%kW198319971912
Electrical efficiency%43.743.444.4
Thermal efficiency%43.343.342.5
Total efficiency%87.086.786.9
Power to heat ratio **1.011.001.04

* With 5% O2 and dry exhaust gas
** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.

Biogas, Landfill Gas, and Sewage Gas Applications, NOx ≤ 500 mg/Nm3 *

TCG 2020 V12
XW = Optimized for operation with biogases at requested power
TCG 2020 V12
X = Optimized for operation with biogases
Engine type50 Hz50 Hz60 Hz
Electrical outputkW100012001200
Thermal output ± 8%kW103511921201
Electrical efficiency%42.643.042.7
Thermal efficiency%44.142.742.7
Total efficiency%86.785.785.4
Power to heat ratio **0.971.001.00



TCG 2020 V16
X = Optimized for operation with biogases
TCG 2020 V20
X = Optimized for operation with biogases
Engine type50 Hz60 Hz50 Hz60 Hz
Electrical outputkW1560156020002000
Thermal output ± 8%kW1566158020102024
Electrical efficiency%42.742.343.042.7
Thermal efficiency%42.942.843.243.2
Total efficiency%85.685.186.285.9
Power to heat ratio **1.000.991.000.99

* With 5% O2 and dry exhaust gas
** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.

Specifications and Service Intervals –
MWM Gas Engine TCG 2020 / TCG 2020 K

Dimensions and Weights

TCG 2020 V12
RW = Optimized for high total efficiency at requested power
XW = Optimized for operation with biogases at requested power
Engine type50 Hz
Lengthmm4660
Widthmm1810
Heightmm2210
Dry weight gensetkg11200
Bore / strokemm170/195
Displacementdm353.1
Speedmin-11500
Mean piston speedm/s9.8



TCG 2020 V12 K
K = Optimized for robustness and low CAPEX
TCG 2020 V12
R = Optimized for high total efficiency
X = Optimized for operation with biogases
Engine type50 Hz60 Hz50 Hz60 Hz
Lengthmm4790597047905970
Widthmm1810179018101790
Heightmm2210221022102210
Dry weight gensetkg11700130001170013000
Bore / strokemm170/195170/195170/195170/195
Displacementdm353.153.153.153.1
Speedmin-11500150015001500
Mean piston speedm/s9.89.89.89.8



TCG 2020 V16 K
K = Optimized for robustness and low CAPEX
TCG 2020 V16
R = Optimized for high total efficiency X = Optimized for operation with biogases
Engine type50 Hz60 Hz50 Hz60 Hz
Lengthmm5430664054306640
Widthmm1810179018101790
Heightmm2210221022102210
Dry weight gensetkg13300149001330014900
Bore / strokemm170/195170/195170/195170/195
Displacementdm370.870.870.870.8
Speedmin-11500150015001500
Mean piston speedm/s9.89.89.89.8



TCG 2020 V20
R = Optimized for high total efficiency
X = Optimized for operation with biogases
TCG 2020 V20
P = Optimized for high electrical efficiency
Engine type50 Hz60 Hz50 Hz
Lengthmm620074706200
Widthmm171017101710
Heightmm219021902190
Dry weight gensetkg179001980017900
Bore / strokemm170/195170/195170/195
Displacementdm388.588.588.5
Speedmin-1150015001500
Mean piston speedm/s9.89.89.8



Service Intervals

TCG 2020 V12, V16, V20, V12 K, V16First service (check valve clearance)Cylinder head inspectionMajor overhaul
Natural gas, purified biogas, sewage gas, and landfill gas4000 oh32000 oh*64000 oh
Unpurified biogas, sewage gas, and landfill gas2000 oh16000 oh*64000 oh



TCG 2020 V12
RW = Optimized for high total efficiency at requested power
XW = Optimized for operation with biogases at requested power
First service (check valve clearance)Cylinder head inspectionMajor overhaul
Natural gas4000 oh40000 oh*80000 oh
Purified biogas, sewage gas, and landfill gas4000 oh32000 oh*64000 oh
Unpurified biogas, sewage gas, and landfill gas2000 oh16000 oh*64000 oh

* “at the latest”
