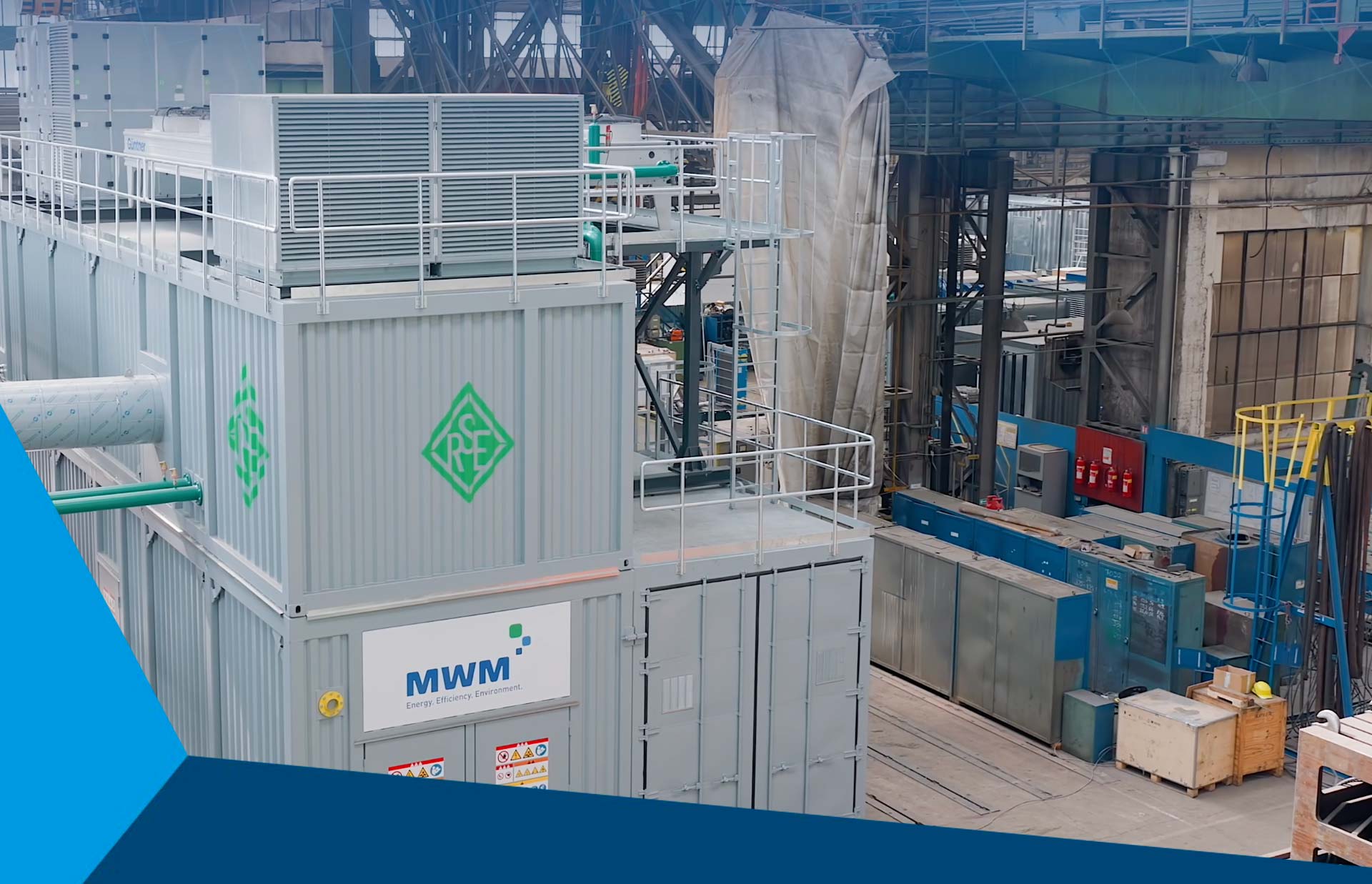

TCG 2032 Modular Power Plant (MPP)

The High Performance of the MWM TCG 2032 V16 Gas Engine in a Container Solution

With an output of up to 4.5 MW_el per functional unit, the turnkey container system is suitable for all natural gas and biogas applications. The CHP plant delivers an electrical efficiency of up to 44.6 percent and a thermal efficiency of up to 42.7 percent and is available as a 50-Hz or 60-Hz variant. If required, the TCG 2032 Modular Power Plant is also available with fast ramp-up when operating on natural gas. The TCG 2032 Modular Power Plant is fully thermally insulated with mineral insulation. This insulation also provides a sound-absorbing effect. The container floor is coated with oil- and gasoline-resistant enamel paint. Since the system is fully automated, it does not require the ongoing deployment of personnel.

TCG 2032 Modular Power Plant: Product Details

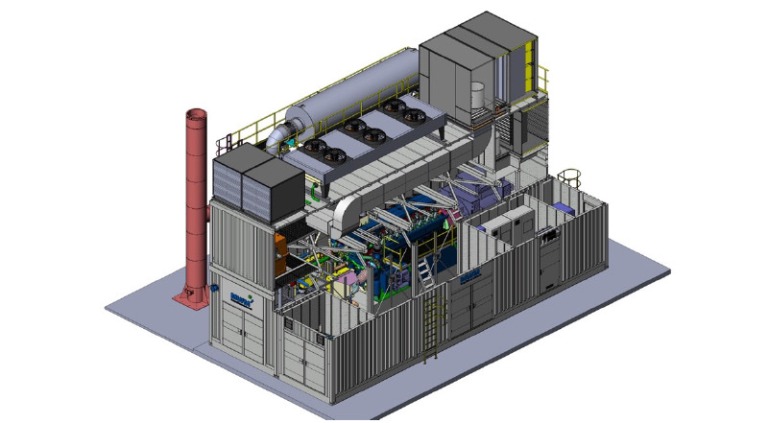

Separated Areas

• Engine and auxiliary area
• Medium-voltage cabinet
• Soundproof switchgear room
• Compressed air equipment
• Spare parts storage and maintenance room

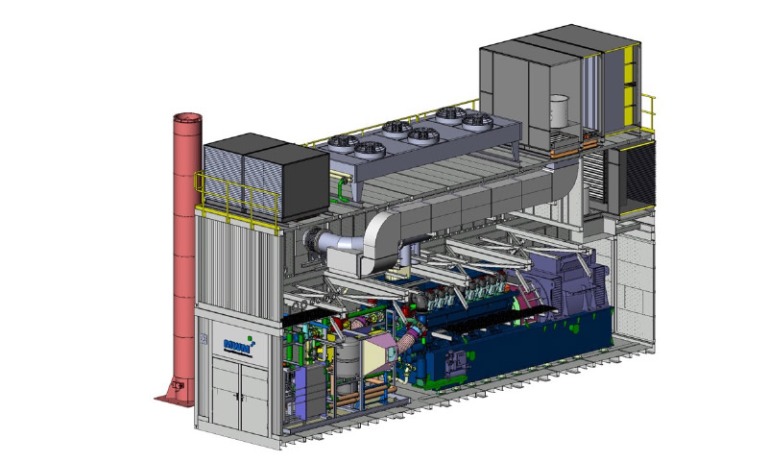

TCG 2032 Modular Power Plant: Engine and Auxiliary Area

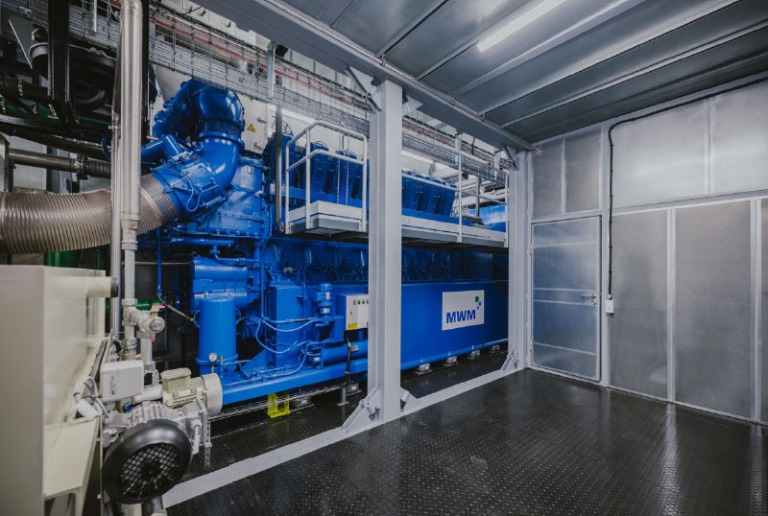

• TCG 2032 generator set
• Pre-assembled heat distribution module
• Gas supply
• Air ventilation
• Permanently installed cranes
• Fresh oil tank (optional)

In the past 15 years alone, MWM has delivered gas engines and generator sets with a total output of more than 10.2 GW around the globe. With its TCG 2032 Modular Power Plant, MWM offers a custom-tailored energy solution especially for industries and segments that can benefit from a mobile, easy-to-install energy system.

Easy-to-Deploy, Flexible, Cost-Saving Energy Solution

The compact and functional design of the TCG 2032 Modular Power Plant is ideal for operators who want a flexible, fast, and cost-effective system. Instead of installing two separate 2.3 MW MWM engines, the CHP plant with an output of up to 4.5 MW_el comes in a single container system for heat and power generation. The MPP can be made operational within only 20 days for module assembly, start-up, and commissioning, which results in significant time and cost savings for plant operators. Moreover, the energy solution can be scaled from a single MPP unit to a complete energy park.

The MPP can be made operational within just 20 days for module assembly, start-up and commissioning, which means significant time and cost savings for plant operators.

Benefits for Plant Operators

• Standalone container system, no additional construction work required
• Minimization of time and resources required for installation
• Fast, cost-saving, and highly efficient energy solution
• Ideal for regions without existing infrastructure
• Scalable from a single MPP unit to a complete energy park
• Easy planning and low implementation costs, no building construction necessary
• Low space consumption
• Rapid ROI owing to time-saving installation and commissioning

We Assist You with the Installation of Your TCG 2032 MPP

Are you looking for a state-of-the-art energy solution that can be implemented quickly and cost-effectively? Contact us for custom-tailored advice:
https://www.mwm.net/en/contact/contact-sales/

Would you like to learn more about MWM gas engines, CHP plants, and cogeneration power plants? Here you can find important information about distributed energy generation with new plants and service offerings:
https://www.mwm.net/en/distributed-power-plants/
